Tubos Acero

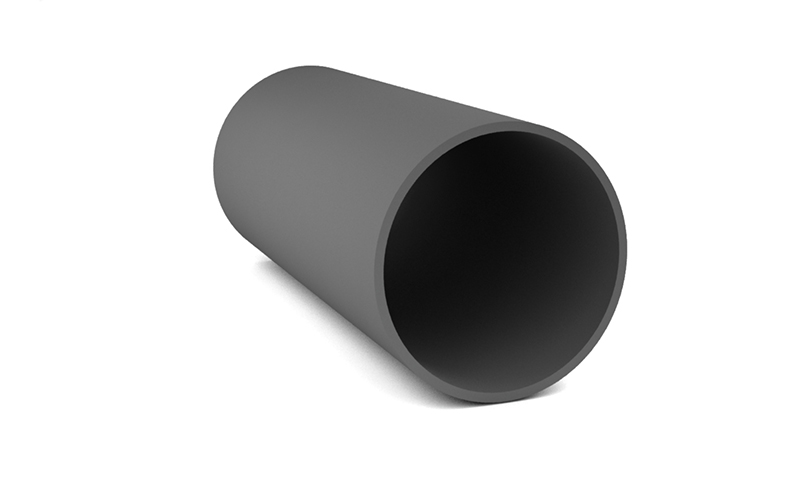

TUBO CILÍNDRICO
ESPESORES:Desde 1 mm. a 12,5 mm. (Segœn di‡metro)
DIÁMETROS:Desde 10 mm. a 323,9 mm. (Segúœn espesor)
CALIDADES:E 220, S-275-JR Y E 220 + Z275 NAC
LONGITUDES:Suministro a medida, largo m‡áximo 6.000 mm.
IMÁGENES:Aplicaciones Acero
Cilíndrico
Tabla de medidas


DIÁMETRO11,52345678101212,5
(mm)
100,2-----------
120,30,4----------
130,30,44----------
140,30,480,62---------
150,40,52----------
160,40,560,72---------
180,40,630,82---------
190,50,670,87---------
200,50,710,92---------
220,50,791,03---------
250,60,91,18---------
26-.1,23---------
280,71,021,33---------
300,71,091,44---------
320,81,181,54---------
33,7---2,36--------
350,91,291,7---------
3811,41,85---------
4011,481,942,85--------
421,11,562,05---------
42,43-----------
431,11,62,1---------
451,11,672,23,23--------
481,21,792,36---------
48,3---3,484,54-------
501,31,862,463,624,72-------
551,42,062,7145,23-------
57-2,142,824,165,44-------
601,52,252,97---------
60,3---4,415,77-------
63-2,373,134,626,05-------
651,72,443,23---------
701,82,633,485,166,77-------
73-2,753,64---------
75-2,833,75---------
7622,873,8---------
76,1-.-5,637,399,1210,83-----
80-3,0245,937,89,6211,45-----
83-3,144,15-8,1-11,34-----
88,9----8,7210,7112,79-----
89-3,364,46---------
90-3,44,516,78,82-------
95-3,614,767,089,34-------
100-3,825,027,479,8512,1714,47-18,93---
101,6----10,0212,3814,66-19,24---
108--5,43-10,02-------
110---8,2210,92-------
113--5,698,4711,2313,8316,43-----
114,3---8,5611,3414,0416,64-21,84---
115--5,79---------
120--6,059,0111,86-------
125----12,3815,3918,3-24,0229,54--
139,7--------27,0433,28--
159--------30,99---
164----16,43-------
168,3----16,8520,924,9629,0232,9740,5648,1549,92
177,8----17,7822,1526,42-34,83---
193,7----19,4524,2328,91-38,0647,1155,9558,14
200----20,0725,3829,8534,6339,42---
219,1----22,0527,4643,76-43,2653,6663,7566,25
244,5----24,6530,6836,71-48,5760,1171,5574,36
273----27,5634,3241,08-54,3967,580,2983,51
323,9-----40,8744,88-64,7980,595,9999,84

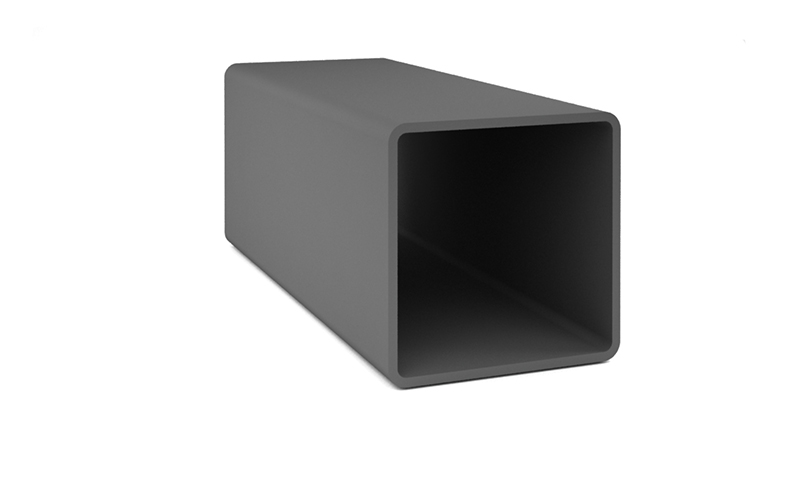

TUBO CUADRADO
ESPESORES:Desde 1 mm. a 12,5 mm. (Segúœn medidas)
MEDIDAS:Desde 10 X 10 mm. a 260 X 260 mm. (Segúœn espesor)
CALIDADES:E 220, S-275-JR Y E 220 + Z275 NAC
LONGITUDES:Suministro a medida, largo má‡ximo 6.000 mm.
IMÁGENES:Aplicaciones Acero
Cuadrado
Tabla de medidas


MEDIDAS11,5234568101212,5
(mm)
10x100,320,47---------
12x120,380,56---------
14x140,440,63---------
16x160,490,71---------
18x180,540,81,04--------
20x200,620,91,16--------
22x220,6811,3--------
25x250,781,141,5--------
28x280,871,291,69--------
30x300,951,391,82--------
32x321,031,522--------
35x351,11,632,152,94-------
38x381,21--3,24-------
40x401,261,882,483,434,37------
45x45-2,132,83,92-------
50x50-2,373,134,425,676,827,86----
55x55-----------
60x60-2,873,795,46,988,469,83----
70x70-3,374,436,388,2910,0911,75----
75x75--4,76--------
80x80-3,855,17,359,5911,7513,7317,06---
90x90--5,758,3310,9213,3115,719,66---
100x100--6,319,3212,1714,9817,6822,2626,73--
110x110---10,313,5216,6419,6624,8629,85--
120x120---11,2314,7718,221,5327,4633,2837,4438,48
125x125---11,7515,519,0322,5728,8134,8439,4240,56
130x130---12,2716,1219,8623,530,0636,441,1942,54
140x140---13,3117,4721,5325,4832,6639,7345,2446,8
150x150---14,2518,7223,1927,4635,2643,1649,950,96
160x160---15,1820,0724,7529,4337,9646,2853,0454,81
175x175---16,6422,0527,2532,3441,8151,4859,2861,05
180x180---17,1622,6728,0833,3843,1652,7360,8462,92
200x200----25,2731,337,2348,3659,2868,6471,03
220x220------41,1853,5665,7376,4479,25
250x250------47,0161,4675,6188,1991,52
260x260-------64,0678,8392,1495,58

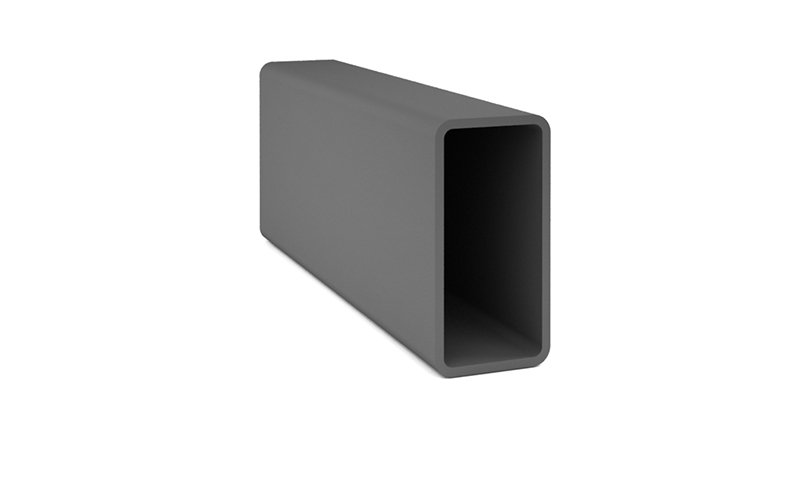

TUBO RECTANGULAR
ESPESORES:Desde 1 mm. a 12,5 mm. (Segúœn medidas)
MEDIDAS:Desde 16 X 10 mm. a 300 X 220 mm. (Segúœn espesor)
CALIDADES:E 220, S-275-JR Y E 220 + Z275 NAC
LONGITUDES:Suministro a medida, largo m‡áximo 6.000 mm.
IMÁGENES:Aplicaciones Acero
Rectangular
Tabla de medidas


MEDIDAS11,52345678101212,5
(mm)
16x100,380,56----------
20x100,460,66----------
20x150,540,781,01---------
25x100,540,781,01---------
25x200,71,021,33---------
30x100,620,91,16---------
30x150,71,021,33---------
30x200,781,141,5---------
30x250,871,271,65---------
35x100,71,021,33---------
35x150,781,141,5---------
35x200,871,271,65---------
35x250,951,391,82---------
40x100,781,141,5---------
40x150,871,271,65---------
40x200,951,391,82---------
40x251,031,521,992,7--------
40x27--2,82,8--------
40x301,11,632,152,94--------
40x35-1,762,31---------
45x10-1,271,65---------
45x150,951,391,82---------
45x20-1,521,99---------
45x25-1,632,152,94--------
45x30-1,762,313,19--------
45x35-1,882,483,434,37-------
50x100,951,391,82---------
50x151,031,521,99---------
50x20-1,632,152,94--------
50x25-1,762,313,19--------
50x30-1,882,473,434,37-------
50x35-22,643,68--------
50x40-2,132,83,925,02-------
60x10-1,632,15---------
60x15-1,762,31---------
60x20-1,882,483,43-------
60x25-22,64--------
60x30-2,132,83,92--------
60x40-2,373,134,425,676,827,86-----
60x50-2,643,45---------
70x20-2,132,8---------
70x25-2,292,86---------
70x30-2,373,134,425,677,638,84-----
70x40-2,643,454,916,327,638,84-----
70x50-2,873,795,46,988,469,83-----
80x20-2,373,13---------
80x30-2,643,454,916,32-------
80x40-2,873,795,46,988,46------
80x45---5,647,3-------
80x50-3,144,115,897,639,2710,82-----
80x60-3,374,436,388,2910,0911,75-----
90x20-2,643,53---------
90x30-2,873,795,46,98-------
90x40-3,144,115,897,639,27------
90x50-3,374,436,388,2910,0911,75-----
100x20-2,943,92---------
100x30-3,144,11---------
100x40-3,374,436,388,2910,0911,75-----
100x50-3,594,766,868,9310,9212,79-----
100x60--5,097,359,5911,7513,73-17,16---
100x80--5,748,3310,9213,3115,7-19,76---
110x70---8,3310,92-------
120x40--5,097,359,5911,7513,73-17,16---
120x50---7,8410,24-------
120x60--5,748,3310,9213,3115,7-19,76---
120x80---9,3212,1714,9817,6821,1122,3626,73--
120x100---10,313,5216,6422,8-----
140x60---9,3212,1714,9817,6821,1122,36---
140x80---10,313,5216,6419,6622,8824,9629,85--
140x100---11,2314,8218,321,4225,5827,56---
150x100---11,7515,519,0322,5726,5230,16---
160x80---11,2314,7718,221,5325,5827,5633,2837,4438,48
160x120---13,2117,4721,5325,4830,1634,01---
160x140---14,2518,7223,1927,46-36,4---
180x80---12,2716,1219,9723,5-30,0636,441,1842,54
180x100---13,2117,4721,5325,4830,1634,0139,7345,2446,8
180x120---14,2518,7223,1927,4632,4536,443,1649,450,96
180x140---15,1820,0724,7529,4334,6339,31---
200x100---14,2518,7223,1927,4632,4536,443,1649,450,96
200x120---15,1820,0724,7529,4334,6339,9147,2853,0454,81
200x150---16,6422,0527,2532,3438,0643,0651,4859,2861,06
200x160---17,1622,6728,0833,38-43,1652,7360,8462,92
250x100---16,6422,0527,2532,3438,0643,0651,4859,2861,05
250x150----25,2731,137,23-48,3659,2868,6471,03
250x200----28,535,3642,12-54,9167,3978,4281,22
300x100----25,2731,337,23-48,3659,2868,6471,03
300x150----28,535,3642,12-54,9167,3978,4281,22
300x200-----39,5245,01-61,4675,6188,1991,52
300x220-----41,0848,98-64,0678,8392,1495,58
